All good things come in threes: While competitors rely on two cutting edges in their 180° flat drills, Gühring is launching a three-fluted tool just in time for the AMB. And to great success: The FB 200 U excels with up to 50 % higher cutting values, process reliability and better hole quality.
This product is only available from 10.09.2024!
As such, the only three-fluted genuine 180° flat drill (patent pending) outperforms conventional two-fluted drills in a number of aspects. Whether you’re dealing with flat, inclined or curved surfaces: With the FB 200 U, entire machining steps or tools are no longer needed in a number of applications. Combined with its outstanding performance, this makes the drill a guarantee for economical processes. The innovative new tool from Gühring is available in the diameter range 4.0 – 20.0 mm and in 3xD as well as 5xD.
Three cutting edges – lots of advantages
With the FB 200 U, three cutting edges with a 180° point angle ensure a more even distribution of cutting forces and, in combination with the reinforced shank transition, ensure high stability during drilling. This enables you to produce rounder holes with much greater dimensional accuracy compared to conventional flat drills.
Another advantage of the FB 200 U is the improved chip removal, which means that users do not have to worry about chip jams or process reliability. The 3-fluted cutter creates short chips that are removed reliably in three directions. This advantage is particularly noticeable in longer chipping materials, where difficulties in chip removal are not uncommon.
Reduced machining times thanks to 50 % higher cutting values
However, the FB 200 U not only impresses with outstanding hole quality: With this tool, up to 50% higher cutting values can be achieved compared to a two-fluted flat drill, allowing users to significantly reduce machining time.
But that’s not all: The FB 200 U can be used to drill on flat surfaces without pre-drilling or reducing the cutting values. The flat drill also eliminates the need to face with a milling cutter before piloting on inclined surfaces. The 3xD version allows for spot drilling on inclined and curved surfaces up to 45° without the tool being pushed away. With the FB 200 U, users not only drill faster – process costs are also reduced through the elimination of individual machining steps and additional tools.
Technical advice and support are also available quickly and directly via our service hotline 00800 2607 2607
We can also be reached on WhatsApp: +49 172 658 53 53. Save the number!
You might also be interested in:
Six times higher metal removal rate: New micro-precision milling cutter for ISO-N materials
The RF 100 AL Micro offers an outstanding combination of precision, efficiency and process reliability, making it the first choice when machining aluminium, copper and brass. With its innovative properties this tool raises the bar for micro-machining.

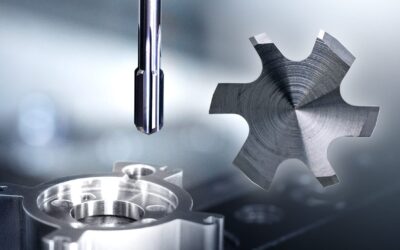

New market standard: The perfect fit for any diameter range
